GCAN-PLC-324 PLC控制器 GCAN-PLC-324 PLC Controller

1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

GCAN-PLC-324-E/R系列是集成有总线控制功能的可编程逻辑控制器（PLC）。其不仅具有外观简约、高性价比的特点，还可以方便的连接入CAN总线系统及Modbus系统等。
The GCAN-PLC-324-E/R series is a programmable logic controller (PLC) that integrates bus control functionality. It not only has the characteristics of simple appearance and high cost-effectiveness, but also can be easily connected to CAN bus systems and Modbus systems.

GCAN-PLC-324-E/R系列产品将微处理器、集成电源、输入电路和输出电路组合到一个结构紧凑的外壳中，形成功能强大的PLC。下载用户程序后，PLC将包含监控应用中的输入和输出设备所需的逻辑。
The GCAN-PLC-324-E/R series products combine microprocessors, integrated power supplies, input circuits, and output circuits into a compact housing, forming a powerful PLC. After downloading the user program, the PLC will contain the logic required for the input and output devices in the monitoring application.

GCAN-PLC-324-E/R系列可使用OpenPCS软件对其编程，也可使用CodeSys V3.5 SP16及以上版本软件对其编程。软件支持符合IEC-61131-3标准中规定的五种标准编程语言，这使得程序的可移植性和复用性很强，而且软件还具有多种调试功能（断点、单步等），调试程序更加方便。
The GCAN-PLC-324-E/R series can be programmed using OpenPCS software or CodeSys V3.5 SP16 and above software. The software supports five standard programming languages specified in the IEC-61131-3 standard, which makes the program highly portable and reusable. Additionally, the software has multiple debugging functions (breakpoints, single steps, etc.), making debugging programs more convenient.

GCAN-PLC-324-E/R系列不仅可完成各种数字/模拟量的输入/输出，还集成了多种常用的工业现场总线，如：CAN总线、RS485总线、以太网总线，并支持常见的通信协议如：CANopen、Modbus RTU、Modbus TCP等。
The GCAN-PLC-324-E/R series not only can complete various digital/analog input/output, but also integrates multiple commonly used industrial fieldbus, such as CAN bus, RS485 bus, Ethernet bus, and supports common communication protocols such as CANopen, Modbus RTU, Modbus TCP, etc.

GCAN-PLC-324-E/R系列为满足多种使用场景，设计为2种供电方式，直流供电型号：GCAN-PLC-324-E/R，交流供电型号GCAN-PLC-324AC-E/R。
The GCAN-PLC-324-E/R series is designed with two power supply modes to meet various usage scenarios. The DC power supply model is GCAN-PLC-324-E/R, and the AC power supply model is GCAN-PLC-324AC-E/R.

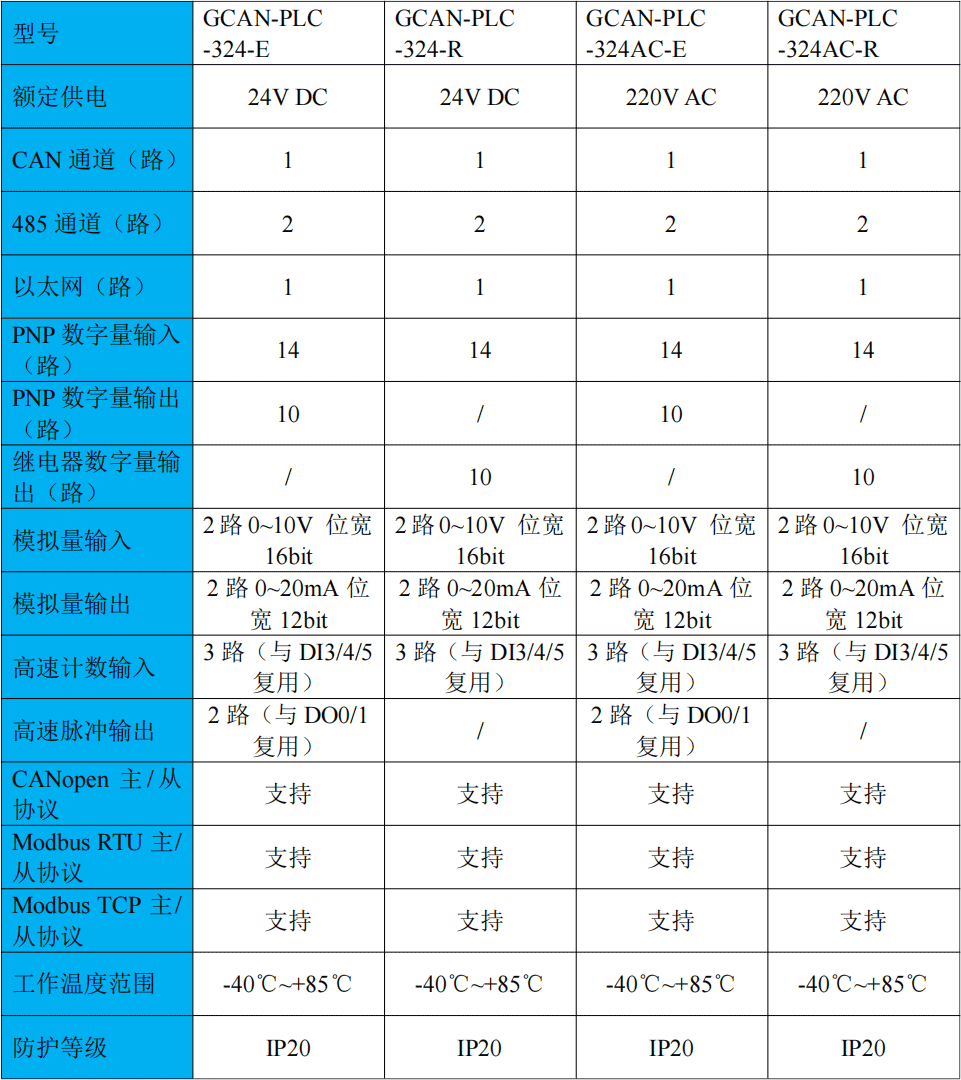

1.2设备参数
1.2 Equipment Parameters

●PNP数字量输入14路24V DC，输入电流最大值为5mA（单通道）；
●PNP digital input with 14 channels of 24V DC, maximum input current of 5mA (single channel);
●PNP数字量输出10路DO 24V DC，输出电流最大值为1A（单通道）；
●PNP digital output with 10 channels of DO 24V DC, maximum output current of 1A (single channel);
●继电器输出10路24V DC 3A/220V AC 5A；
●Relay output 10 channels 24V DC 3A/220V AC 5A;
●2路AI 0~10V映像位宽16Bit（0~65535）；
● 2-channel AI 0~10V image with a bit width of 16 bits (0~65535);
●2路AO 0~20mA映像位宽12Bit（0~4095）；
● 2-channel AO 0~20mA image bit width of 12 bits (0~4095);
●3路12-24V DC脉冲输入计数（与DI3、DI4、DI5复用）；
● 3-channel 12-24V DC pulse input counting (multiplexed with DI3, DI4, DI5);
●2路VCC电源电压DC PWM高速脉冲输出（与DO0、DO1复用）；
● 2-channel VCC power supply voltage DC PWM high-speed pulse output (multiplexed with DO0 and DO1);

具体参数请点击下方产品手册链接查看
Please click on the product manual link below to view the specific parameters

1.3典型应用
1.3 Typical Applications

●工业自动化控制核心
● Industrial automation control core
●模拟量闭环控制系统
● Analog closed-loop control system
●开关量开环控制，逻辑运算
● Switching open-loop control, logical operation
●工业CAN总线、ModBUS总线网络通讯
●Industrial CAN bus, ModBUS bus network communication

GCAN-PLC-324设备使用手册链接
GCAN-PLC-324 Equipment User Manual Link

www.gcgd.net/filedownload/2977795
