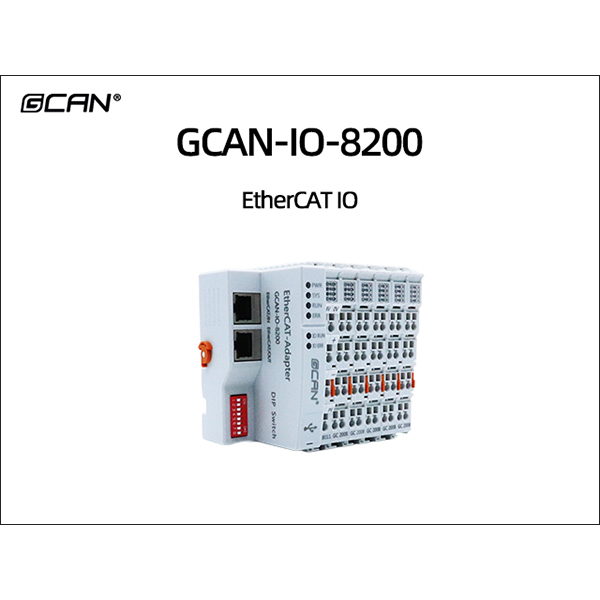

GCAN-IO-8200 EtherCAT IO耦合器 GCAN-IO-8200 EtherCAT IO coupler

1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

GCAN-IO-8200 EtherCAT总线耦合器是我公司推出的基于EtherCAT总线自主研发的高性能总线通用远程IO模块，为用户节约成本，简化配线，提高系统可靠性，这些IO端子模块可以通过模块化的方式进行扩展。一个完整的节点由一个总线耦合器、1-32个任意数量的端子模块以及一个终端端子模块组成。采用GCAN-IO-8200 EtherCAT总线耦合器，通过GC-bus扩展技术，可极为方便地建立I/O连接，最多可连接32个输入/输出端子模块，其中当扩展模块数量超过16片时，需额外增加一片IO供电扩展模块GC 8012以保证电源供应充足。此系列IO特别适用于现场点数多，信号种类多集中控制。
The GCAN-IO-8200 EtherCAT bus coupler is a high-performance bus universal remote IO module independently developed by our company based on the EtherCAT bus. It saves costs, simplifies wiring, and improves system reliability for users. These IO terminal modules can be expanded in a modular manner. A complete node consists of a bus coupler, 1-32 terminal modules of any number, and one terminal module. By using the GCAN-IO-8200 EtherCAT bus coupler and GC bus expansion technology, I/O connections can be easily established. Up to 32 input/output terminal modules can be connected. When the number of expansion modules exceeds 16, an additional IO power supply expansion module GC 8012 needs to be added to ensure sufficient power supply. This series of IO is particularly suitable for centralized control with multiple on-site points and signal types.

GCAN-IO-8200总线耦合器可连接所有的总线端子模块。就用户而言，模拟量输入/输出信号的处理方式与其它种类信号的处理方式没有任何区别。控制器过程映像区内的信息以字节阵列格式显示。GCAN-IO-8200总线耦合器支持自动组态，您无需在PC上设置参数。
The GCAN-IO-8200 bus coupler can connect all bus terminal modules. As far as users are concerned, the processing method of analog input/output signals is no different from that of other types of signals. The information within the controller process image area is displayed in byte array format. The GCAN-IO-8200 bus coupler supports automatic configuration, so you don't need to set parameters on your PC.

1.2性能特点
1.2 Performance Characteristics

●2个EtherCAT总线接口，EtherCAT/IN和EtherCAT/OUT（RJ45）；
● 2 EtherCAT bus interfaces, EtherCAT/IN and EtherCAT/OUT (RJ45);
●总线传输速率：100Mbps；
●Bus transmission rate: 100Mbps;
●总线传输距离（站与站间距）：100m；
●Bus transmission distance (distance between stations): 100m;
●在电源供应充足（加扩展电源模块）情况下可扩展IO模块数量最多为32个（最多32x8个DI/DO点）；其中当扩展模块数量超过16片时，需额外增加一片上述的IO供电扩展模块GC 8012以保证电源供应充足；
●The maximum number of expandable IO modules (up to 32x8 DI/DO points) is 32 when the power supply is sufficient (with additional expansion power modules); When the number of expansion modules exceeds 16, an additional IO powered expansion module GC 8012 needs to be added to ensure sufficient power supply;
●组态方式根据IO插片顺序组态；
●The configuration method is configured according to the order of IO plugs;
●电源采用24V DC（-15%/+20%）；
●The power supply adopts 24V DC (-15%/+20%);
●电流消耗约360mA；
●The current consumption is about 360mA;
●为后续IO供电最大电流约740mA；
●The maximum current for subsequent IO power supply is about 740mA;
●电气隔离为1500 Vrms；
●Electrical isolation is 1500 Vrms;
●工作温度范围：-40℃~+85℃；
●Working temperature range: -40 ℃~+85 ℃;
●尺寸：长100mm*宽69mm*高48mm。
●Size: Length 100mm * Width 69mm * Height 48mm.

1.3典型应用
1.3 Typical Applications

●与分布式总线端子模块相连接，构成一个完整的控制节点；
●Connect with the distributed bus terminal module to form a complete control node;
●执行数据采集并以EtherCAT协议进行数据传输。
●Perform data collection and transmit data using the EtherCAT protocol.

GCAN-IO-8200设备使用手册链接
GCAN-IO-8200 Equipment User Manual Link

www.gcgd.net/filedownload/2977883

如果您需要具体了解设备或者询价，可以加我微信或在线对话框联络。
If you need specific information about the equipment or inquire about the price,you can add me on WeChat or contact me through the online chat.
